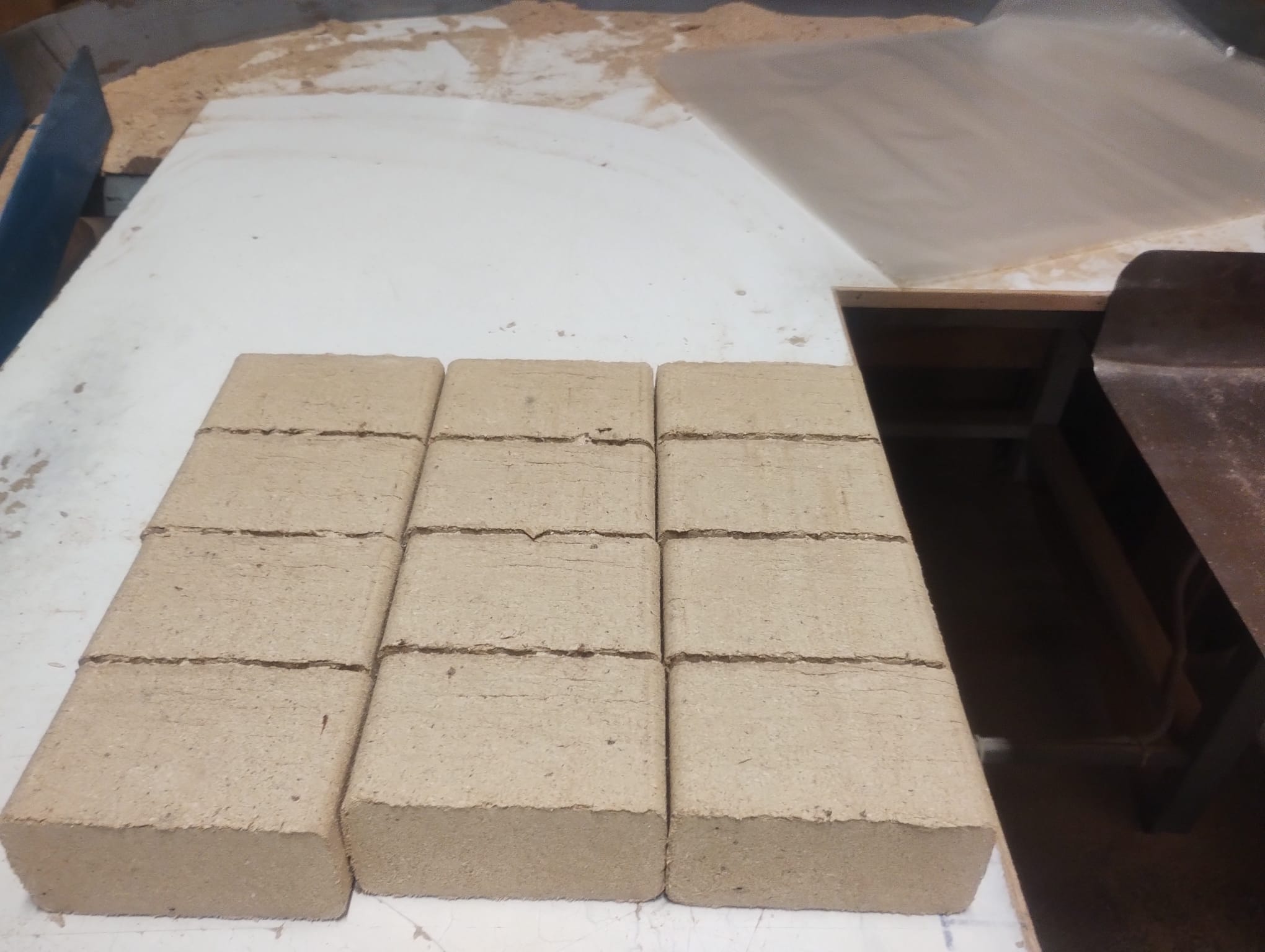

The briquette material processed by the press comes out in the form of a block briquette (135 x 65 x 80 – 100 mm).
The briquette does not contain any binding agents and the compression is
achieved solely by the pressure inside the pressing chamber (reduction of
original volume up to 8x).
Calorific value of briquettes is 15 to 18 MJ/kg.
Materials that can be processed by the briquette machine:
● sawdust
● wood shavings
● sander dust
● rapeseed and cereal straw
● textile dust and short fibres
● paper, cardboard
● polyutherane and some composites
Technical and operating conditions:
Hopper capacity: 2 m3
Output: 300 – 500 kg per hour
Dimensions:
Length: 2290 mm
Width: 2610 mm
Height: 1400 mm
Weight: 3060 kg
Power input: three-phase, 26.5 kW
The moisture content of input material: 8-15 hm%
